DJI FPV Air Unit-antenne (MMCX-elleboog)

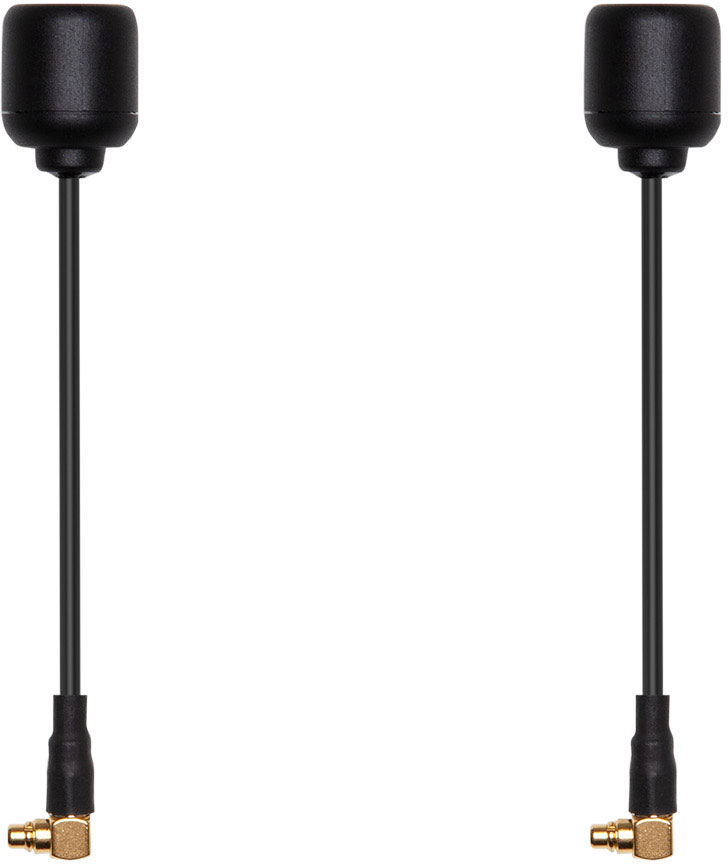

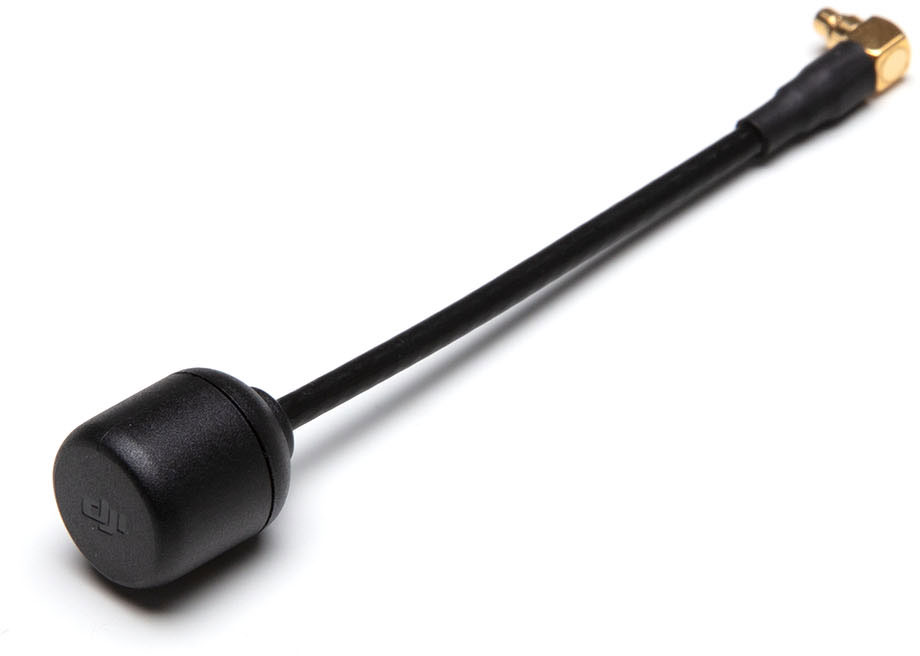

DJI FPV Air Unit Antenna (MMCX Elbow)
LHCP antenna with MMCX joint, which is small and lightweight and ensures a long-distance transmission range and strong anti-interference.
Highlights
- long-distance transmission
- small size
- lightweight
- durable
Technical Info
- VSWR<2 frequency range: 5.4GHz-6GHz, 2.75dB gain and 3dB axial ratio beamwidth at 5.8GHz
- Size: 12.7 × 12.7 × 80 mm
- Weight: 3.9 g
- Suitable for DJI FPV Air Unit
In the box
- DJI FPV Air Unit Antenna (MMCX) × 2
Tips
- Keep the antennas of the air unit at least 40 mm apart.
- Keep the air unit away from metal objects or carbon fiber frames. Make sure to choose a position where the transmission will not be blocked during flight.
- The DJI FPV Air Unit is equipped with MMCX antenna ports. Since the port (the inner pin) is small, when pulling out the antenna, please hold the air unit with one hand, press the two ends of the antenna with the other hand, and remove it horizontally.
- Please note that dragging the antenna directly may cause the inner pin and the collar to fall off or get damaged.
EAN
6958265190407
Brand
DJI
Product type
DJI FPV Antenna
Warranty
2 year
Dimensions (LxWxH)
12.7 × 12.7 × 80 mm
Weight
0.0039 kg
